Shimano rear derailleur installation instructions at a glance

These Shimano rear derailleur installation instructions follow the sequence most home mechanics need in the workshop: confirm compatibility, inspect the hanger, mount the derailleur squarely, size the chain, set the high and low limits, adjust the B-screw or chain gap, connect the cable, index the gears, and test every sprocket under light load. Shimano’s public dealer manuals are model-specific and mainly written for professional mechanics, so use this guide as a structured companion, not a substitute for the exact manual for your derailleur model. If the bike uses electronic shifting, a clutch, a direct-mount hanger, a UDH-style hanger, or a wide-range cassette, the overall order may look similar, but the adjustment details can change.

For more general setup articles, see our installation guides.

Before you start, identify the exact derailleur and drivetrain

Shimano rear derailleurs are not installed and adjusted in one universal way. A 9-speed mechanical mountain derailleur, an 11-speed road derailleur, a GRX gravel derailleur, a CUES derailleur, and a Di2 electronic derailleur all attach to the rear hanger, but they may use different cable routing, chain-gap targets, cage capacity, pulley alignment methods, and service tools.

Before working on the bike, find the model code printed or stamped on the derailleur body. It usually starts with RD, such as RD-R7000, RD-M8100, RD-RX812, or RD-U6000. Match that code to Shimano’s model-specific dealer manual or service instruction. The exact document matters because Shimano may specify a particular B-screw method, pulley gap, inner-cable route, tightening torque, or chain length rule for that model family.

Also confirm these compatibility points:

• Speed count: match the derailleur, shifter, cassette, and chain system. Mixing unrelated 10-, 11-, and 12-speed parts can cause poor indexing even when the derailleur is installed correctly.
• Cassette range: check the maximum low sprocket and total capacity listed for the derailleur. A short cage may not handle a large cassette or a wide double-chainring setup.
• Hanger type: standard, direct mount, and UDH-related setups can change how the derailleur sits and how the B-screw is adjusted.
• Chain type: Shimano directional chains must be installed in the correct orientation. Some drivetrains also require a specific quick link or connecting pin.
• Shifting type: mechanical cable systems require cable tension and indexing; Di2 systems require electronic adjustment mode, battery charge, wire connections, and firmware-aware setup.

If the derailleur was damaged in a crash, do not assume the replacement part alone will restore clean shifting. A slightly bent hanger is one of the most common reasons a new rear derailleur will not index properly across the cassette.

Tools, parts, and safety checks

A clean installation is easier when the bike is stable and the drivetrain is not packed with dirt. Use a repair stand if possible. If the bike must stay on the floor, lift the rear wheel when checking shifts so the wheel can spin freely.

Typical tools and parts include:

• Hex keys, commonly including 4 mm and 5 mm sizes, depending on the derailleur and cable clamp.
• A torque wrench for the derailleur mounting bolt and cable anchor where torque values are specified.
• Phillips or flat screwdriver for limit screws, depending on the model.
• Cable and housing cutters for mechanical drivetrains.
• New shift inner cable and fresh housing if the existing parts are corroded, kinked, contaminated, or frayed.
• Chain tool and compatible Shimano connecting link or pin.
• Hanger alignment gauge if the bike has shifting problems or has taken an impact.
• Model-specific Shimano setting tool if the derailleur manual calls for one.

Inspect the derailleur hanger from behind the bike. The derailleur cage should appear parallel to the cassette. Visual inspection is not as accurate as an alignment gauge, but it can reveal severe bends. Also check that the rear wheel is fully seated in the dropouts or thru-axle system. A wheel that is not seated correctly can make the derailleur look misadjusted.

Finally, inspect the cable path. On mechanical Shimano systems, friction in the cable and housing can feel exactly like a bad derailleur adjustment. If the shifter feels heavy, the cable does not return smoothly, or the housing ends are crushed, replace the cable and housing before fine-tuning.

Step-by-step Shimano rear derailleur installation

Remove the old derailleur and prepare the hanger

Shift to the smallest rear sprocket before removing a mechanical derailleur. This releases cable tension and makes the old cable easier to disconnect. Cut off the cable end cap, loosen the cable anchor bolt, and pull the cable free. Open the chain if needed, then remove the derailleur mounting bolt from the hanger.

Clean the derailleur hanger threads and check for cracks, pulled threads, or impact marks. If the hanger is replaceable and visibly bent, replacement is usually better than trying to compensate with adjustment screws on the new derailleur.

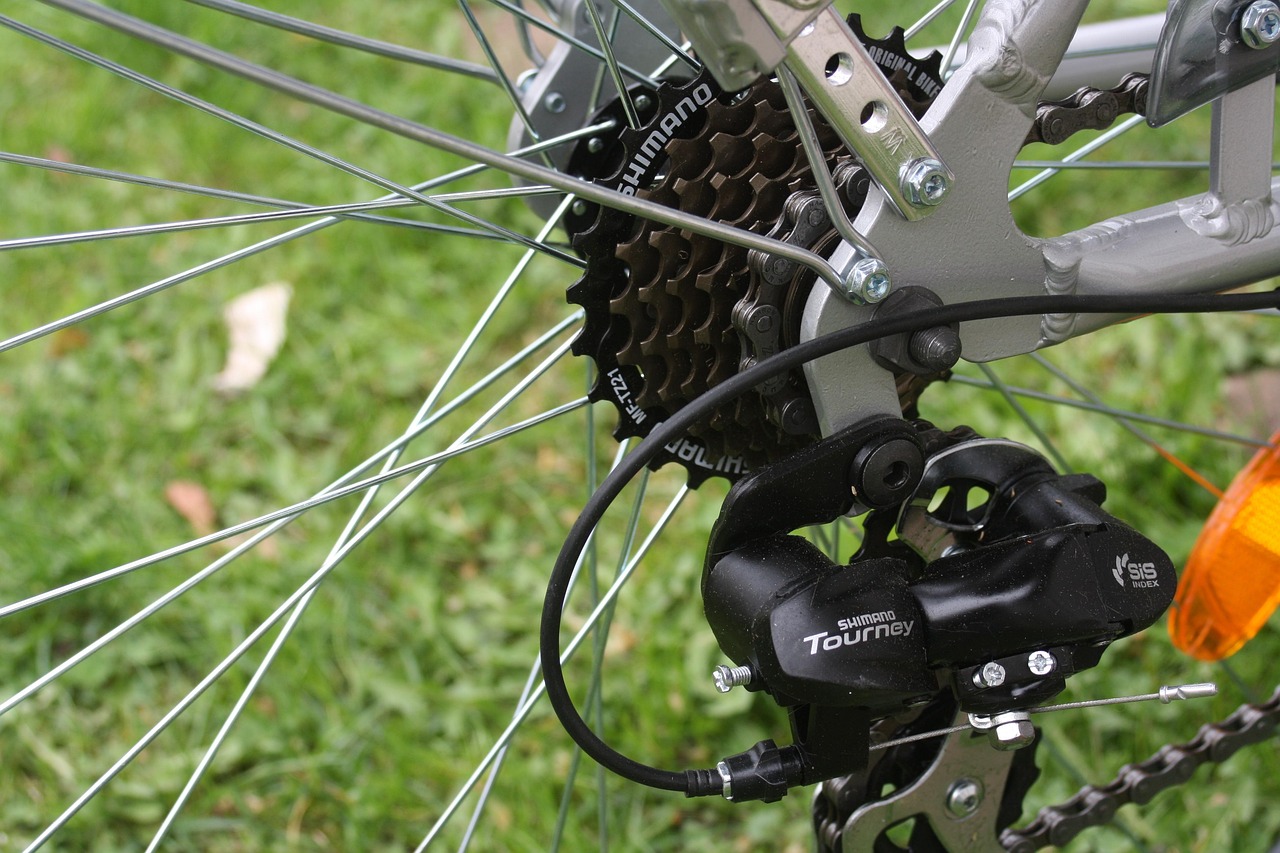

Mount the Shimano rear derailleur

Start the derailleur mounting bolt by hand to reduce the risk of cross-threading. Tighten the bolt with the correct hex key and the torque value from the model manual. Many Shimano mechanical rear derailleur manuals list a bracket-axle torque in the range commonly seen around 8–10 N·m, but this is not a universal value. Always follow the number for the exact model.

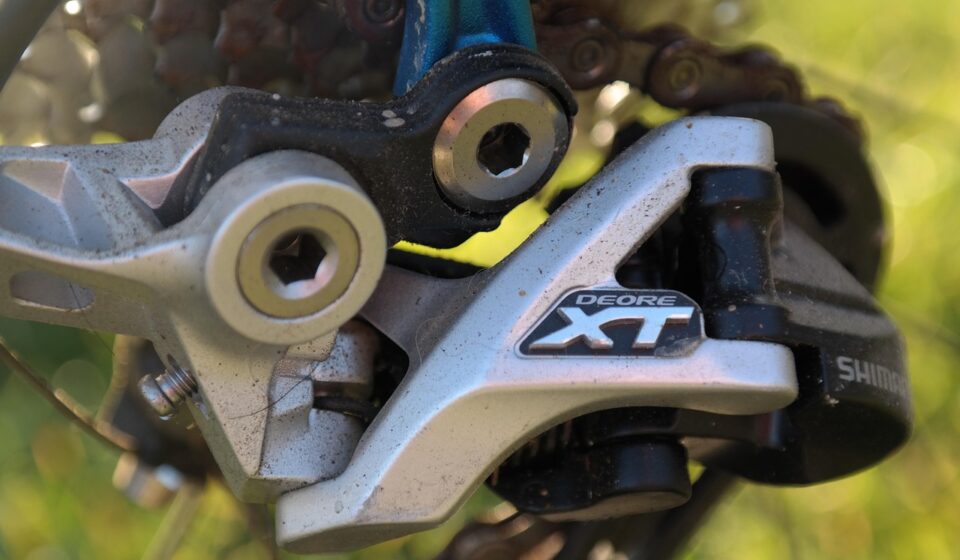

As you tighten the derailleur, confirm that the B-screw or stopper plate contacts the correct part of the hanger. Some Shimano service instructions warn that incorrect contact can deform parts or leave the derailleur sitting at the wrong angle. If the derailleur has a clutch switch, leave it off while installing and sizing the chain unless the manual says otherwise.

Install and size the chain

Chain length is not a cosmetic detail. A chain that is too short can damage the derailleur when shifted into the largest sprocket and largest chainring. A chain that is too long can create slack, noisy shifting, or poor chain control in small-small combinations.

Shimano manuals commonly use a large-sprocket and large-chainring method for many drivetrains, often adding a specified number of links before joining the chain. The correct rule can still vary by derailleur generation, suspension design, and drivetrain layout. On a full-suspension bike, chain length may also need to account for chain growth through the suspension travel.

After sizing, route the chain correctly through the derailleur cage. The chain must pass around the guide pulley and tension pulley without rubbing the cage tabs. This simple routing mistake can cause grinding even when the derailleur adjustments are otherwise correct.

Set the high limit screw

The high limit controls how far the derailleur can move toward the smallest sprocket and dropout side. With the chain on the smallest sprocket, look from behind the bike and align the guide pulley with the outer line of the smallest sprocket. Shimano service instructions for many mechanical systems use this visual alignment as the starting point.

If the high limit is too far outward, the chain may fall between the smallest sprocket and the frame. If it is too far inward, the bike may hesitate to shift into the highest gear or may rub on the next sprocket.

Connect the shift cable

For a mechanical system, make sure the shifter is fully released to the highest-gear position before anchoring the cable. Route the cable exactly through the groove or clamp path shown in the derailleur manual. Shimano documents repeatedly emphasize correct cable seating because a cable clamped on the wrong side of a groove changes the pull geometry and makes indexing unreliable. See also: Building Materials.

Pull the cable snug by hand, tighten the anchor bolt to the specified torque, and add an end cap after final adjustment. Do not over-tension the cable at this stage. Indexing is easier when the barrel adjuster is set near the middle of its range before the cable is clamped.

Set the low limit screw

Shift carefully toward the largest sprocket while turning the crank. The low limit controls how far the derailleur moves toward the wheel. Adjust it so the guide pulley lines up with the largest sprocket without pushing the chain into the spokes.

This is a critical safety adjustment. If the low limit is too loose, the chain can overshift into the spokes and damage the wheel, derailleur, hanger, or frame. If the low limit is too tight, the chain will not reach the easiest gear cleanly.

Adjust the B-screw, chain gap, and indexing

The B-screw sets the relationship between the upper guide pulley and the cassette. This gap affects shift speed, noise, and the derailleur’s ability to clear the largest sprocket. Shimano’s method varies by derailleur family. Some older instructions describe turning the B-tension screw until the guide pulley is close to the sprocket but does not touch. Some newer manuals use a measured distance, an outer-plate contour alignment, or a model-specific G-pulley setting tool.

Adjustment area	What it controls	Common symptom if wrong	Important caution
High limit	Outward travel at the smallest sprocket	Chain will not reach high gear or drops outward	Set by pulley alignment, not cable tension
Low limit	Inward travel at the largest sprocket	Chain overshifts toward spokes or cannot reach low gear	Check slowly before riding
B-screw or chain gap	Guide pulley clearance from cassette	Noisy large-sprocket shifts or slow climbing shifts	Use the model-specific method
Cable tension	Indexing between sprockets	Hesitation in one direction across the cassette	Adjust after limits are safe

Once the limits and B-screw are close, index the gears. Shift one click at a time while turning the crank forward. If the chain hesitates when moving from a smaller sprocket to a larger sprocket, increase cable tension slightly by turning the barrel adjuster counterclockwise. If it hesitates when moving from a larger sprocket to a smaller sprocket, reduce cable tension slightly by turning the barrel adjuster clockwise.

Make small changes, usually a quarter turn at a time, and test again. Good indexing does not come from one large turn. It comes from correct hanger alignment, safe limit positions, proper chain gap, clean cable movement, and small tension adjustments working together.

Model-specific differences to watch

The biggest mistake when following general Shimano rear derailleur installation instructions is assuming every derailleur has the same final setup target. The broad sequence is similar; the details are not.

• Older mechanical systems: many service instructions use high and low pulley alignment, cable anchoring, B-tension adjustment, then SIS indexing as the main sequence.
• Modern Shadow and Shadow RD+ derailleurs: cage position, clutch setting, and chain gap can be more sensitive, especially with wide-range cassettes.
• Road and gravel derailleurs: some models use specific pulley-gap distances for different cassette sizes, while others use alignment markings or contour-based instructions.
• CUES and newer Linkglide-related systems: cable routing and compatibility should be checked carefully because these systems are designed around specific drivetrain families.
• Di2 derailleurs: installation may include electronic adjustment mode, wiring checks, battery status, crash protection reset procedures, and app-based diagnostics. Cable-tension instructions do not apply to these systems.

Shimano publishes separate dealer manuals, user manuals, service instructions, exploded views, and quick manuals. For installation and adjustment, the dealer manual is usually the most detailed document. For routine operation and safety warnings, the user manual may be more appropriate.

Troubleshooting after installation

If shifting is still poor after the basic setup, do not keep turning screws at random. Start with the symptom and work back to the likely cause.

• Slow shift to larger sprockets: cable tension may be too low, the cable may be sticky, or the hanger may be bent.
• Slow shift to smaller sprockets: cable tension may be too high, housing friction may prevent cable release, or the derailleur spring may be obstructed by dirt.
• Noise only on the largest sprocket: the B-screw or chain-gap setting may be too close, or the low limit may be slightly off.
• Noise across the cassette: check chain routing through the derailleur cage, chain wear, cassette wear, and wheel seating.
• One perfect end of the cassette and one poor end: suspect hanger alignment, cassette spacing, incompatible parts, or a bent derailleur cage.
• Chain drops into the spokes: stop riding and reset the low limit before further testing.

After the bike shifts correctly in the stand, test it outdoors under gentle load. A drivetrain can shift acceptably with no load but hesitate when pedaling force is applied. Avoid full-power shifts during the first test. Recheck cable tension after a short ride because new cables and housing can settle slightly.

Frequently asked questions

Can I install a Shimano rear derailleur without a torque wrench?

It is possible to physically install one without a torque wrench, but it is not best practice. The derailleur mounting bolt and cable anchor can be damaged by over-tightening or loosened by under-tightening. A small torque wrench is especially useful on modern aluminum frames, replaceable hangers, and compact derailleur hardware.

Which screw should I adjust first on a Shimano rear derailleur?

Start with the limit screws and derailleur position before fine indexing. Cable tension cannot safely correct a low limit that lets the chain move toward the spokes, and it cannot properly correct a high limit that blocks the smallest sprocket.

Why does my Shimano derailleur shift well in some gears but not others?

Uneven shifting across the cassette often points to hanger alignment, cable friction, worn drivetrain parts, incorrect cable routing, or compatibility issues. Barrel adjustment works best when the mechanical setup is already straight and the parts are matched.

Do Shimano Di2 rear derailleurs follow the same instructions?

They share some mechanical checks, such as hanger alignment, chain length, pulley clearance, and limit safety. However, Di2 systems use electronic adjustment rather than mechanical cable tension, so the setup procedure must follow the Di2 model manual.

How do I know if the B-screw is set correctly?

The correct sign is smooth shifting into and out of the largest sprocket without pulley contact, excessive noise, or sluggish movement. The exact visual target depends on the derailleur model, cassette size, and whether Shimano specifies a measured gap, an alignment mark, or a setting tool.

Final installation checklist

• The derailleur model matches the shifter, cassette, chain, and drivetrain speed.
• The hanger is straight, tight, and undamaged.
• The mounting bolt is tightened to the model-specific torque.
• The chain is sized using the method specified for the drivetrain.
• The chain is routed correctly through both derailleur pulleys.
• The high limit prevents outward overshift at the smallest sprocket.
• The low limit prevents inward overshift toward the spokes.
• The B-screw or chain gap is set by the correct Shimano method for the model.
• The cable is routed through the correct groove and clamped securely.
• Every rear shift works under light riding load, not only in the repair stand.

Shimano rear derailleur installation is straightforward when the work is done in the correct order. Do not use cable tension as a shortcut for every problem. Mount the derailleur squarely, set the mechanical travel limits first, establish the correct pulley gap, and then index the gears with small barrel-adjuster changes. When the exact Shimano manual differs from a general guide, follow the model-specific manual.
